Nissan Navara EGR Cooler Delete Bypass Kit D40 YD25 2.5L Diesel - Euro 4 Style
EGR Cooler Delete Kit / Bypass Kit for Nissan Navara D40 YD25 2.5L diesel engines.

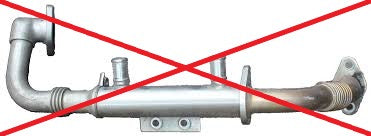

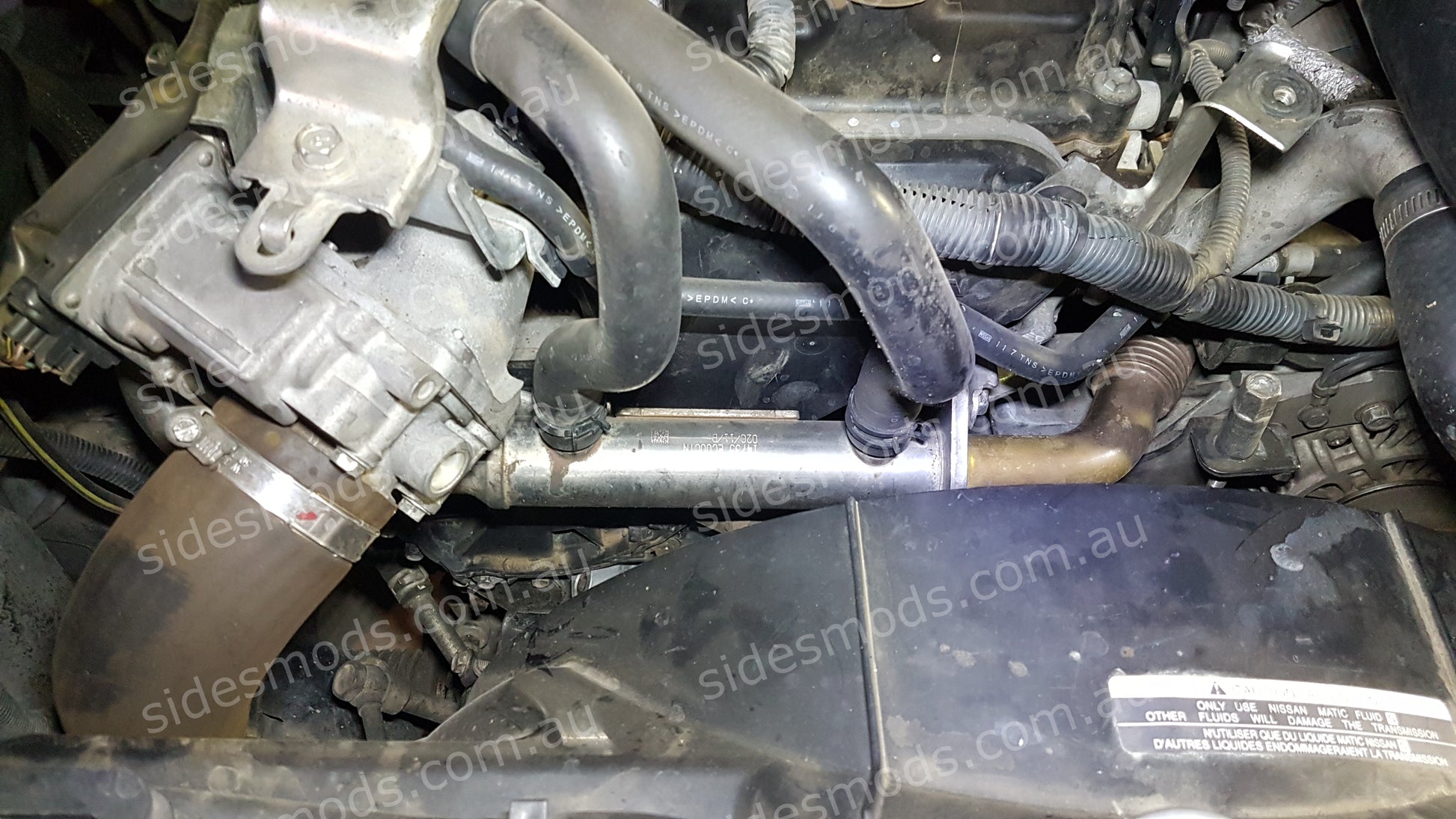

This is the kit for Euro 4 style engines, up to 128kW engine, identified by the EGR Cooler mounted at the front of the engine and the EGR valve secured to the intake manifold with four bolts.
Will suit:
- Spain built models with VIN number starting "VSK" built up to 01/2010
- Thai built models with VIN number starting "MNT" all build dates
Please check and compare your vehicle to the pictures. If unsure please send us your VIN number to confirm!

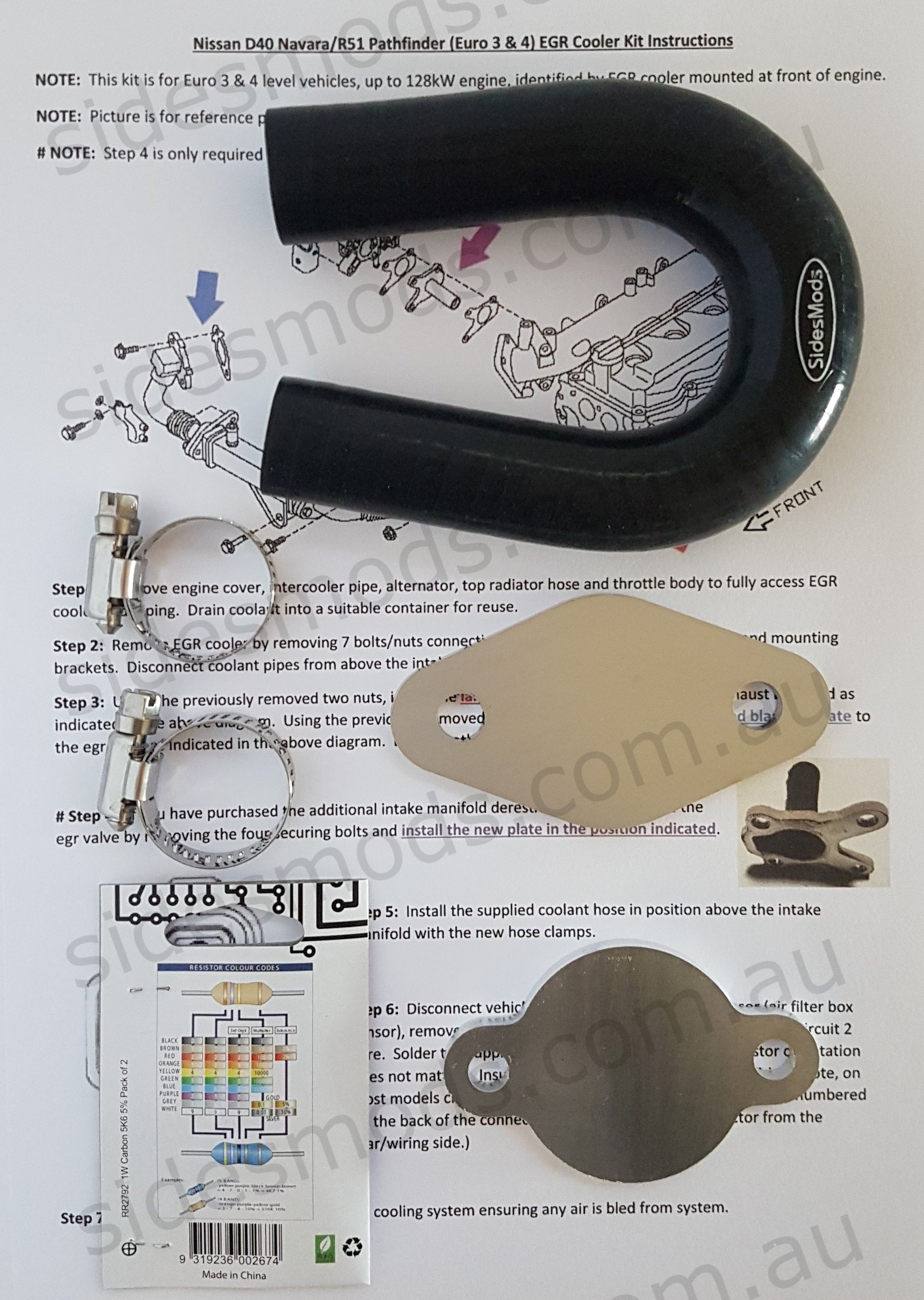

You will be supplied with everything necessary to successfully remove and bypass the EGR cooler, including detailed instructions.
This kit takes a few hours to install with some basic mechanics tools.

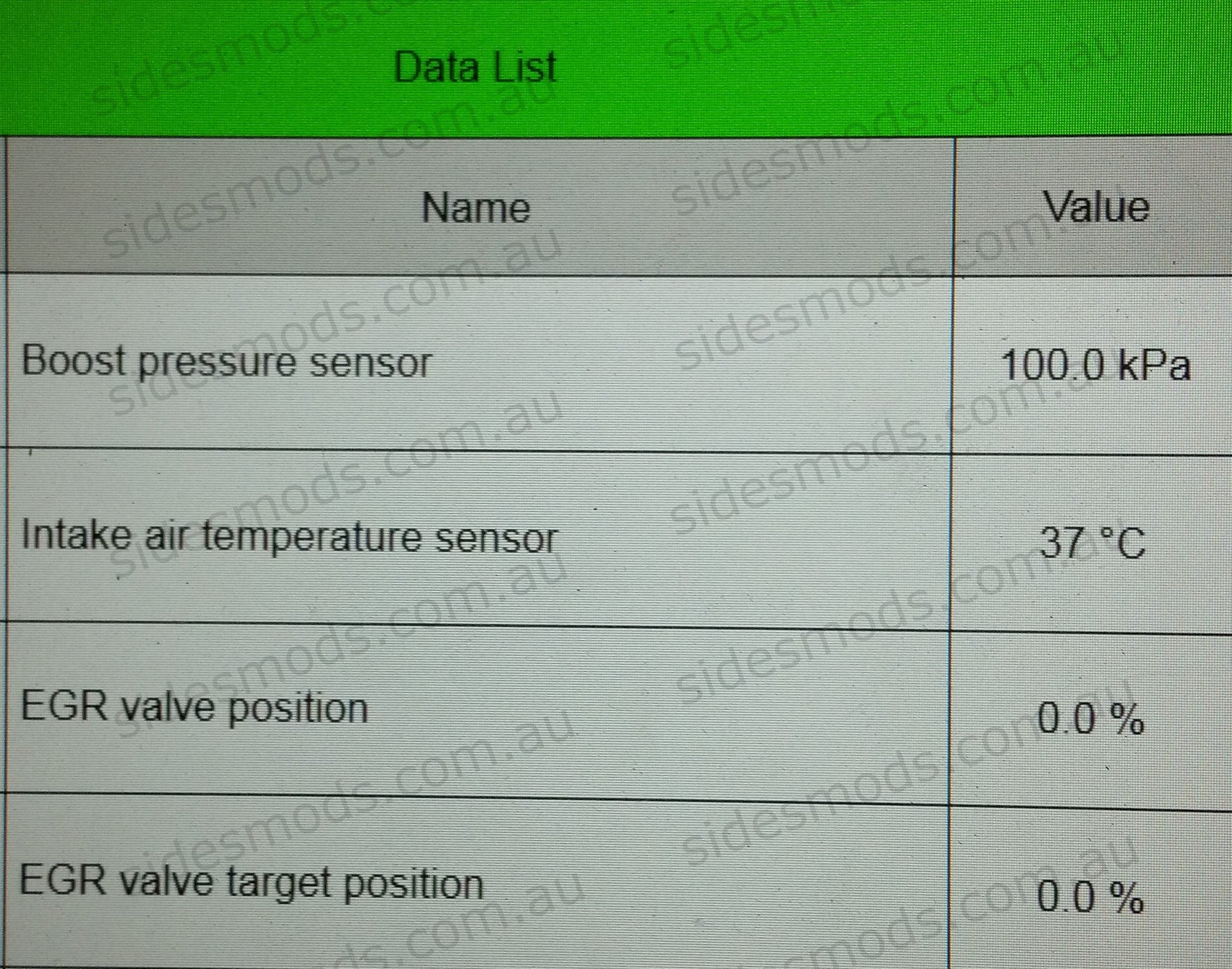

This kit will electronically stop EGR operation without causing any fault lights or running concerns. The engine will still run on factory ECU mapping/tables for zero EGR percentage.
Benefits Include:
- repair the common issue of EGR pipe cracking at the exhaust manifold
- eliminate the common issue of overheating and engine/cylinder head damage caused by an internal EGR cooler leak
- improved fuel economy, no more blocked up intake manifold
- lower intake temperatures
- lower coolant temperatures
- drastically extended engine oil life
It is also recommended to have your intake system cleaned to return your engine to optimal performance.

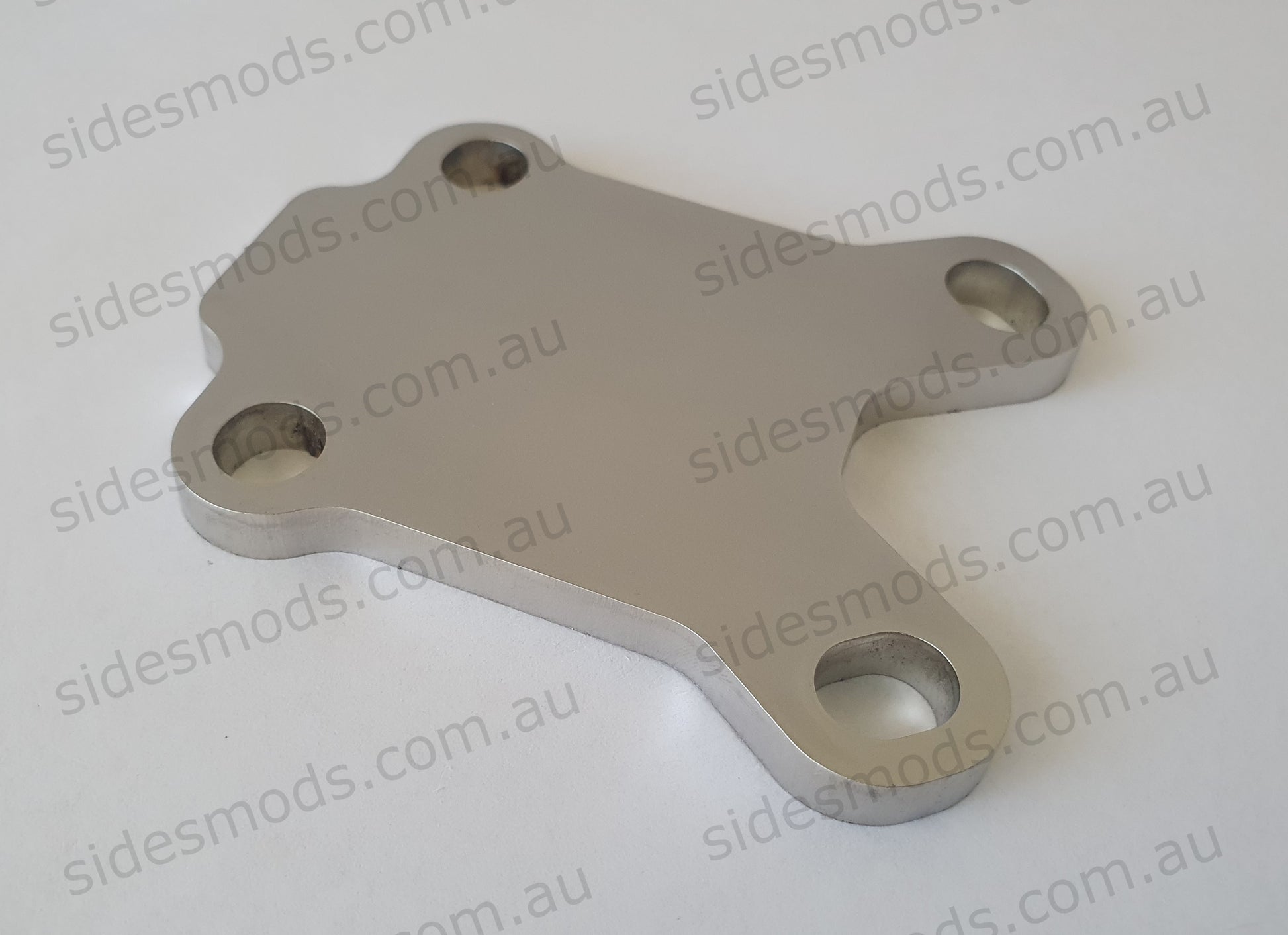

Kit is available with or without the optional intake derestriction plate (last picture).
*designed and tested for off road use*
Frequently Asked Questions:
What are the differences between each version kit for Euro 4 style Navara?
We offer three options for the Euro 4 style Navara...
Standard EGR Cooler kit:
- removes the EGR Cooler only and stops EGR operation while the engine is running.
EGR Cooler kit with intake derestriction plate:
- removes the EGR Cooler, the EGR tube inside the intake manifold and stops EGR operation while the engine is running
- maximizes airflow through intake manifold and gives a small increase in low rpm engine torque
Intake Derestriction Kit only:
- removes only the EGR tube inside the intake manifold and stops EGR operation while the engine is running
- still has the risk of the EGR Cooler leaking internally or externally
- maintains "faster engine warm-up" effects from the EGR Cooler, good for very cold climates
